View (Property View)

We will explain the property view here.

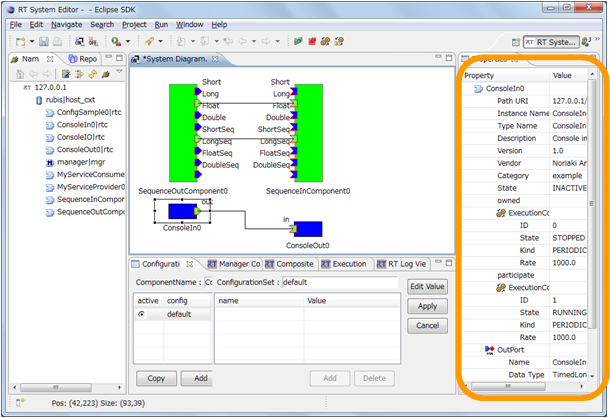

Property view position


In the Properties view, RTC and connector profile information selected in System Dialog is displayed in real time. (Even if RTC is selected, it will be reflected immediately if a change is detected)

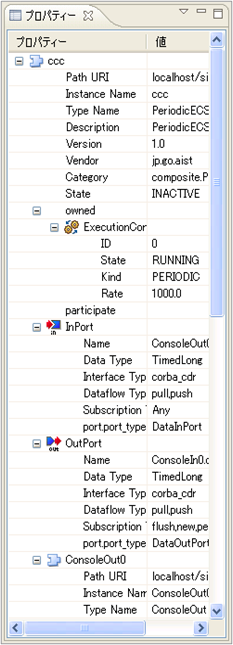

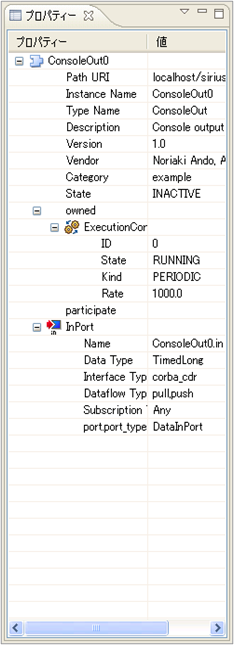

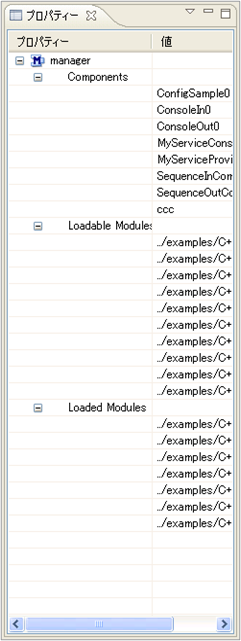

For RTC For composite RTC For manager

Property view


The meanings of the displayed icons are as follows.

Property icon list

No. Icon Name Display Contents
1
RTC InstanceName, TypeName, Description, Vender, Category, State(It is displayed based on the LifeCycleState of the first ExecutionContext)
2
ExecutionContext State, Kind, Rate
3
ServicePort Name, Property information list
4
Outport Name, Property information list
5
Inport Name, Property information list
6
PortInterfaceProfile InterfaceName, TypeName, PortInterfacePolarity
7
manager Components (List of generated component names)
Loadable Modules (list of loadable module names)
Loaded Modules (List of loaded module names)
In the specification of RTC, LifeCycleState of RTC exists for each ExecutionContext. Therefore, there are multiple states, but in RT System Editor, only the 1st ExecutionContext is used to display the STATE.
