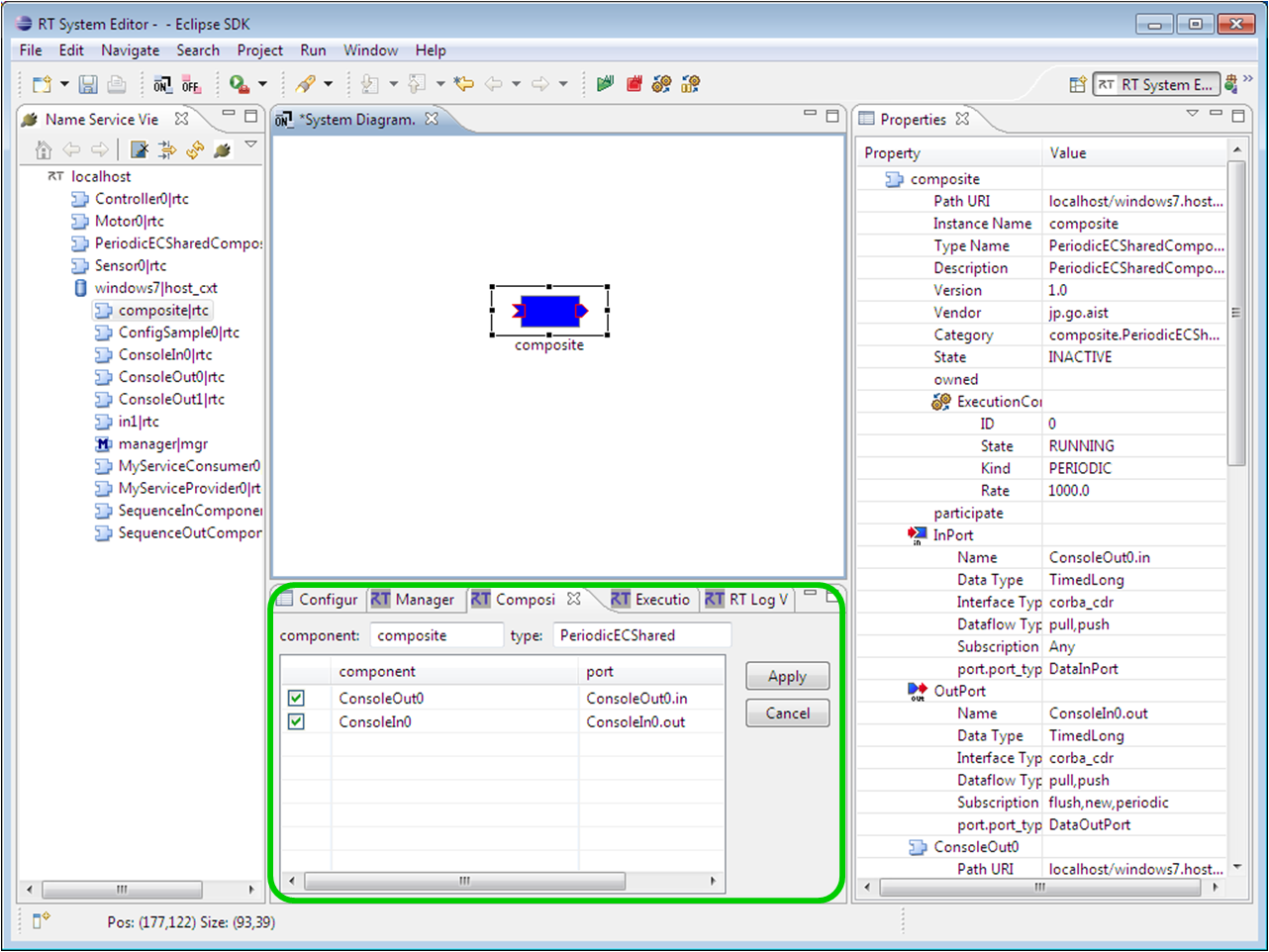

The composite component view displays the public information about the selected composite component, as well as change which ports are publically available.

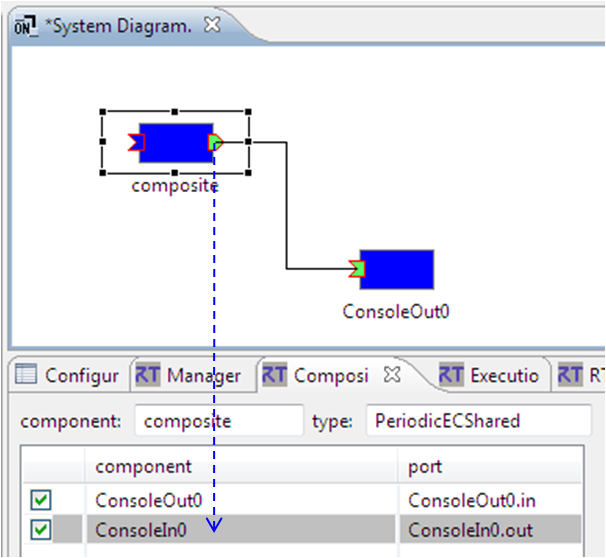

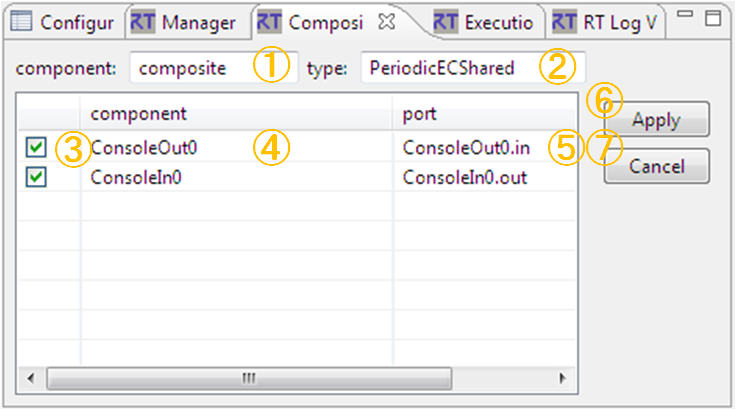

Settings edited in the composite component view are not applied until button ⑥ is pressed. Changed but not applied values are highlighted in red. Ports selected in the system editor are highlighted in yellow.

Composite component ports that are connected to ports of other components in the system editor are highlighted in grey and cannot be edited.
