Name Service View

OpenRTM-aist uses name servers for management and publication of RT Components. The Name Service View allows the display and editing of these name services.

Functionality Outline

The RT Name Service view provides the ability to graphically manipulate RT Components in real-time. The offered functionality is as follows:

Functionality Overview
Connect to and edit name servers Connect to a name server and display the components registered with that server in a tree view.
Display component profiles Display the profile information of the selected component in the property view.

Starting Name Service View


Name Service View

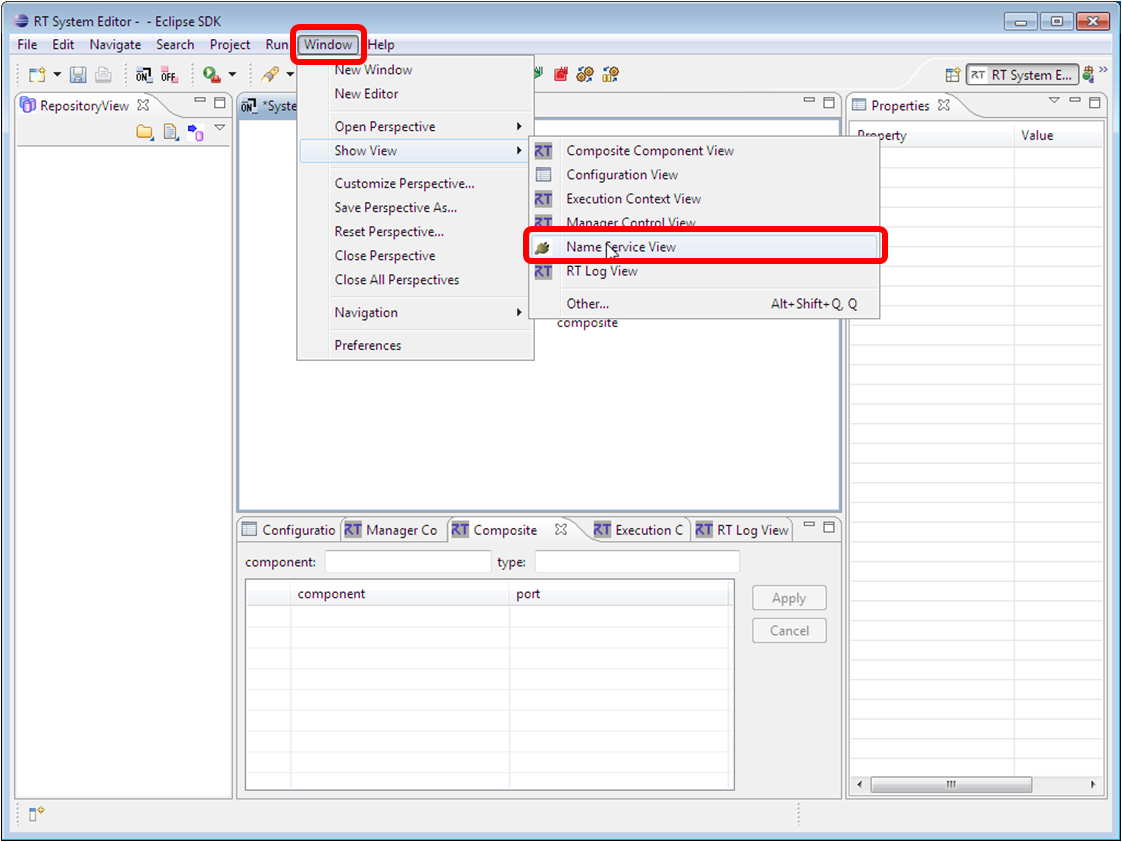

From the Window menu, select Display View and then Name Service View.

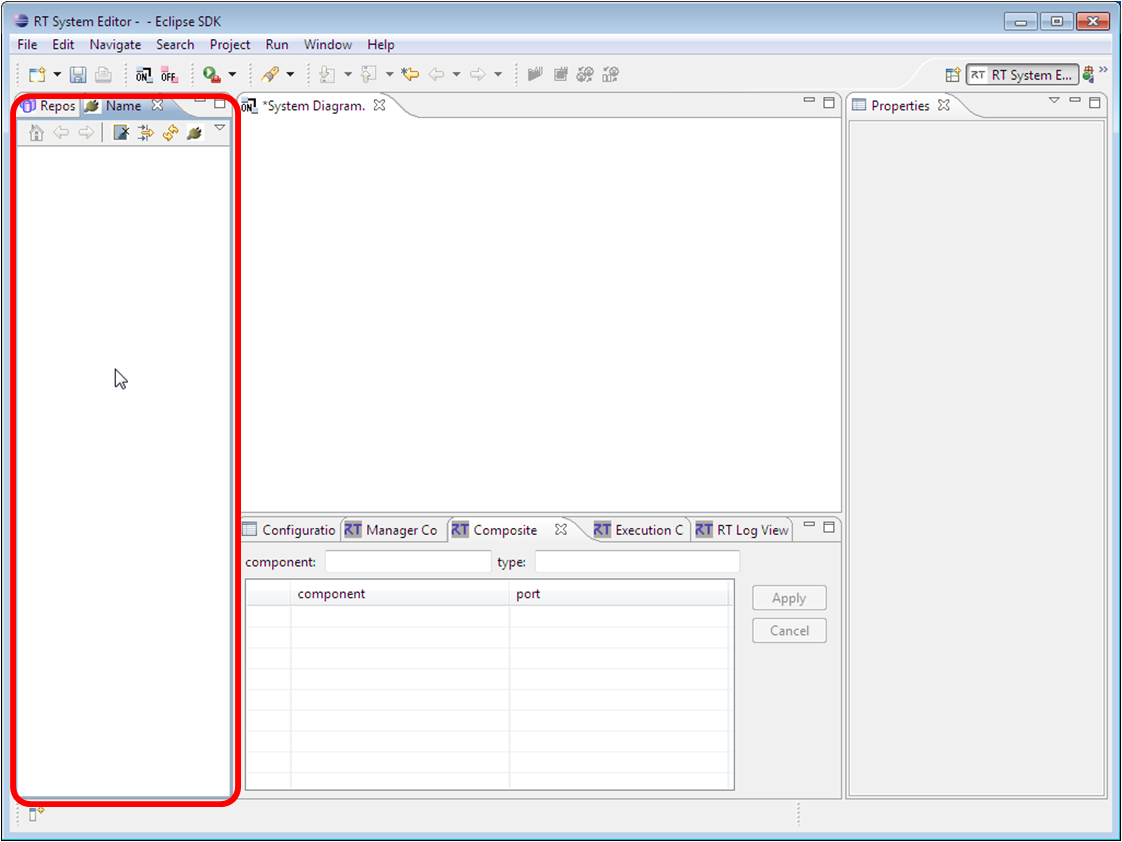

The starting screen of RT Name Service View

The standard Eclipse Property view can be displayed in the same way.

Connecting to a name server

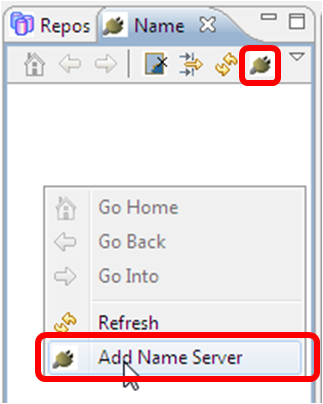

Click on the Add Name Server button or select Add Name Server from the context menu.

Connecting to a name server

In the Connect Name Server dialog, enter the IP address and port of the name server. If the port is omitted, the default port as configured in the RT System Editor settings is used. This defaults to 2809.

Connect Name Server dialog

When Eclipse is restarted, the name servers that were connected in the previous session will be automatically connected again. If they don't exist, it will attempt to connect to localhost:2809.

Deleting a name server

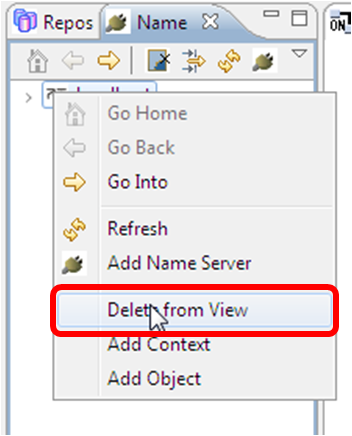

To delete a connected name server, click the Delete from View button.

Deleting a name server

Displaying a name server's contents

If a name server has components registered with it, they can be displayed in a tree layout.

Name Service View

The icons displayed in the view are described below.

Name Service View icons

Icon Type Name
host_cxt Host context
mgr_cxt Manager context
cate_cxt Category context
mod_cxt Module context
Except above Folder (except above contexts)
None RTC
None Manager
None Manager
None Object (non-RTC)
None Registered with the name server, but the object itself cannot be accessed.

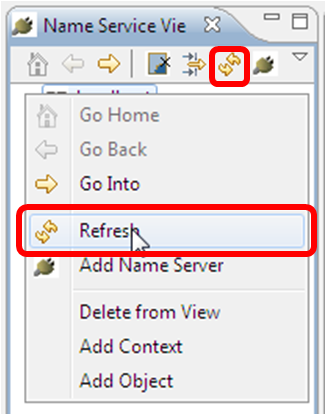

The Name Service View is always observing connected name servers and updating the display. The update period can be configured in the RT System Editor settings. The display can also be refreshed manually. Click the Refresh button at the top of the view or select Refresh from the context menu to do so.


Changing the Name Service View scope

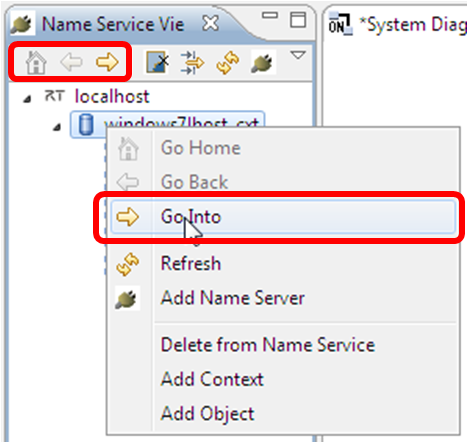

When the Name Service View becomes crowded with too many RT Components, the view's root can be moved down the tree. Right-click on the tree node you wish to make the new root and select Go Into.

Changing the display root

After changing the display root

Select Go Back to move the root up one level, or Go Home to move it back to the actual root of the tree.

Filtering the Name Service View

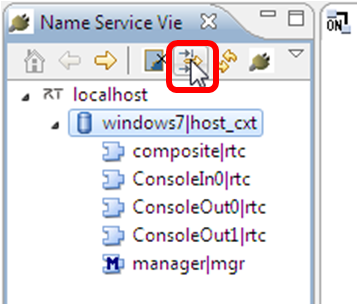

When the Name Service View becomes crowded with too many RT Components, a filter can be created to limit what is displayed. Click the Name Service View Filter button to add a filter.

Adding a filter

In the displayed Name Service Filters dialog, select the items to hide from the view.

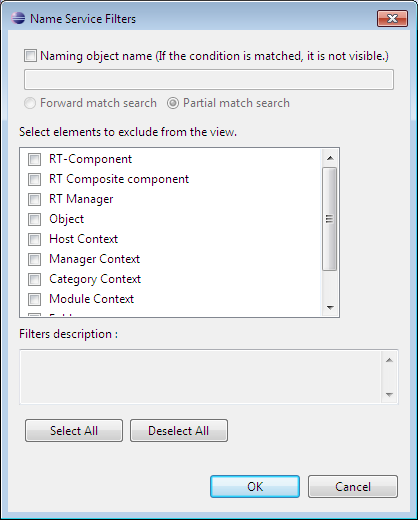

Name Service Filters dialog

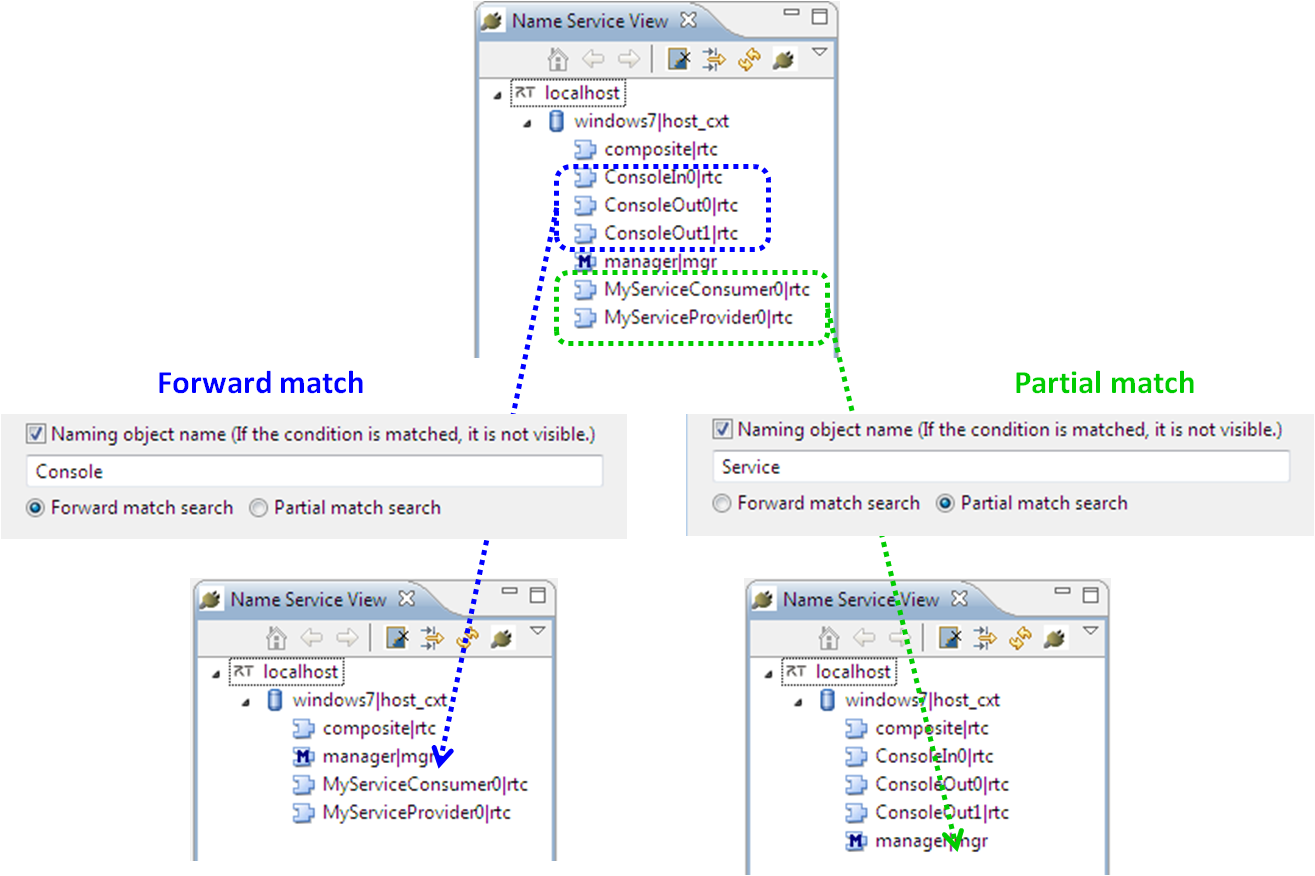

Check the items you wish to exclude, and they will be hidden in the Name Service view display. Check Naming object name and enter a name to hide objects who's name matches. The object name condition can be a match against the start of the name or a partial match.


Deleting Name Service Entries

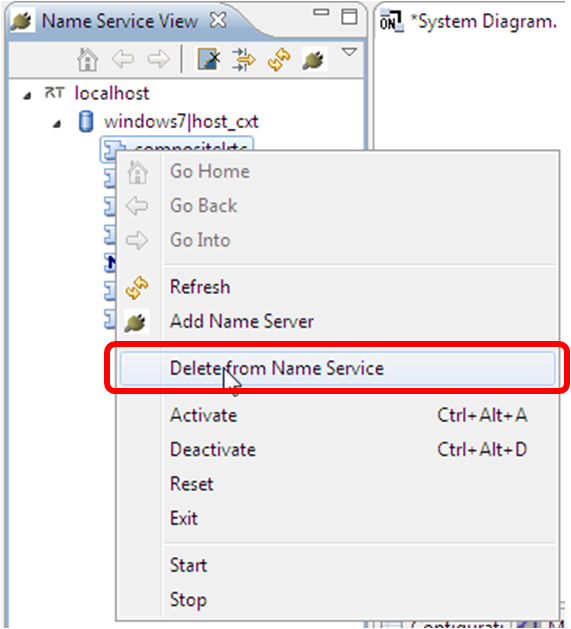

Objects registered with a name service can be deleted from that service using the Name Service View. Right-click on the object to delete and select Delete from Name Service from the context menu.

Delete from Name Service

Adding and Deleting Objects

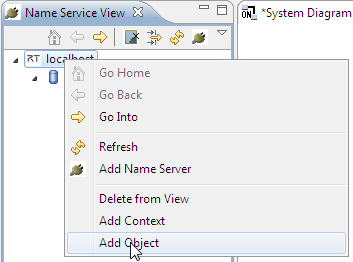

The Name Service View can be used to register objects to a name service. To add an object, right-click on the context it should be a child of and select Add Object from the context menu.

Add Object

In the Add Object dialog, enter the object's name, type and IOR.

Add Object dialog

Adding Contexts

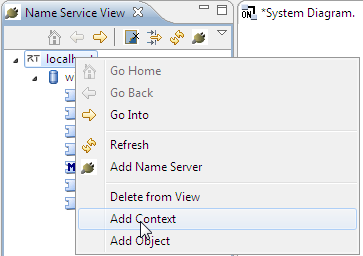

Contexts can be added to and deleted from name servers using the Name Service View. To add a context, right-click on the context it should be a child of and select Add Context from the context menu.

Add Context

Add Context dialog

Enter the name and kind of the context in the Add Context dialog. The kind can be one of the following.

Context kinds

Kind Name
host_cxt Host context
mgr_cxt Manager context
cate_cxt Category context
mod_cxt Modual context
Other Folder (context other than the above)

Deleting Zombie Objects

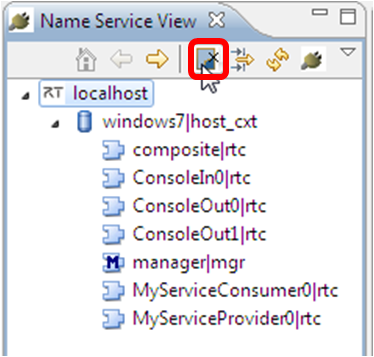

The Name Service view has a function to delete all zombie objects at once. Click the Kill All Zombies button at the top of the view to do remove all zombie objects.

Deleting Zombie Objects
