IOのテスト

ここでは、PiRT-Unitの入出力をそれぞれ簡単にテストしてみます。

ADコンバータのテスト

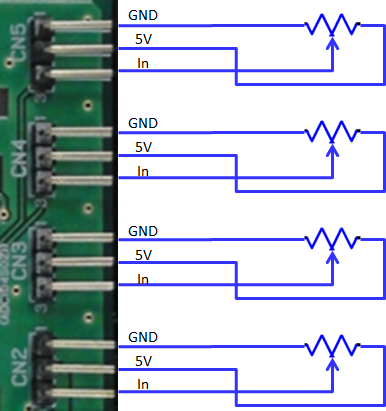

PiRT-Unit の CN2-CN5 がADコンバータのピンです。 ピンアサインは以下の図のようになっており、GND-5V間を分圧したものを入力ピンに加えることでセンサ値などを読み取ることができるようになっています。

ADコンバータと接続回路

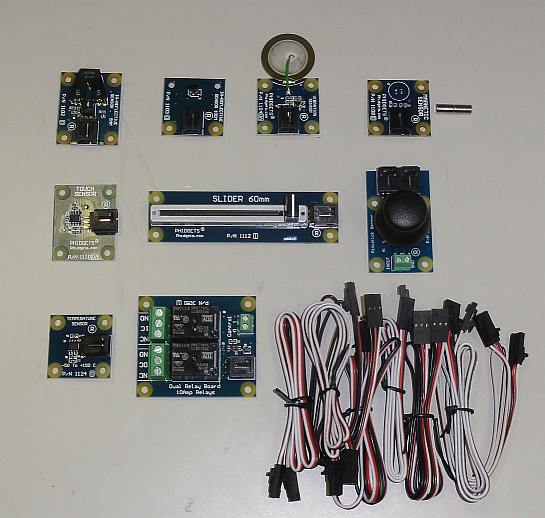

ADコンバータをテストするもっとも簡単な方法は、Phidgetsのセンサを接続することです。 Phidgets は Phidgets Inc. から発売されている、IO拡張ボードとセンサ群製品です。 日本では、ぷらっとほーむなどで購入することができます。

PCにUSB接続の拡張IOボードを接続し、様々なセンサ、アクチュエータユニットを追加して、プログラム等から計測・制御することができるキットです。

PCと接続する場合は、Interface Kitが必要ですが、PiRT-Unitでのみ使用する場合は、Sensor Kitのみでよいでしょう。

PIRT-UnitのADピンは、Phidgetのセンサが接続可能なピンアサインとなっており、Phidgetデバイスを接続することで、容易に拡張することができるようになっています。

サンプルプログラム

adc_test.py

 #!/usr/bin/env python
 # -*- coding: euc-jp -*-
 import sys
 import time
 import spidev

 class ADC:
   def __init__(self):
     self.spi = spidev.SpiDev()
     self.spi.open(0, 0)

   def get_value(self, channel):
     sned_ch = [0x00,0x08,0x10,0x18]
     if ((channel > 3) or (channel < 0)):
       return -1
     r = self.spi.xfer2([sned_ch[channel],0,0,0])
     ret = ((r[2] << 6 ) & 0x300) |  ((r[2] << 6) & 0xc0) | ((r[3] >> 2) & 0x3f)
     return ret

   def get_voltage(self, channel):
     ret = self.get_value(channel) * 5.0 / 1024
     return ret

 def main():
   adc = ADC()
   while 1:
     adc1 = adc.get_value(0)
     msg1 = "%1.5fV(%04x)" % ((float(adc1)*5/1024),adc1)
     print msg1,

     adc1 = adc.get_value(1)
     msg1 = "%1.5fV(%04x)" % ((float(adc1)*5/1024),adc1)
     print msg1,

     adc2 = adc.get_value(2)
     msg2 = "%1.5fV(%04x)" % ((float(adc2)*5/1024),adc2)
     print msg2,

     adc3 = adc.get_value(3)
     msg3 = "%1.5fV(%04x)" % ((float(adc3)*5/1024),adc3)
     print msg3,

     sys.stdout.write("\n")
     time.sleep(0.5)

 if __name__ == '__main__':
   main()

テスト

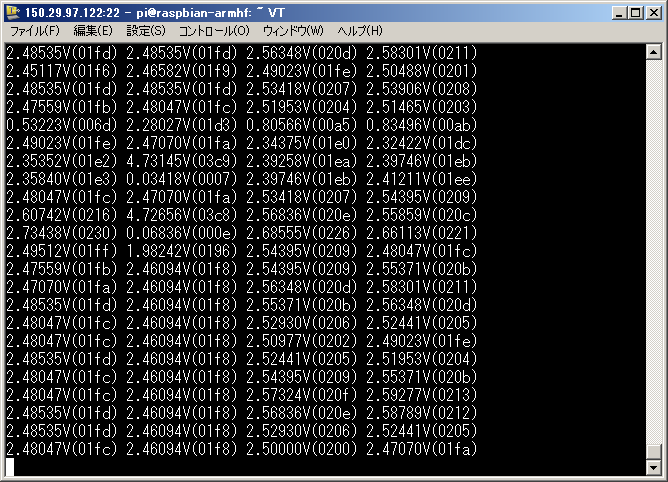

ADコンバータにピンに適当な可変抵抗やPhidgetセンサなどを接続して、adc_test.py を実行すると、下図のようにセンサ値を読み取ることができます。

adc_test.py によるADコンバータの読み取り

DAコンバータのテスト

dac_test.py

 #!/usr/bin/env python
 # -*- coding: euc-jp -*-
 import spidev
 from time import sleep

 spi = spidev.SpiDev()
 spi.open(0,1)

 def changeLevel(ch,  onOff, percent):
   bit7 = ch    << 7
   bit6 = 0     << 6
   bit5 = 1     << 5
   bit4 = onOff << 4
   size=12
   number=(2**size-1)*percent/100
   number= number<<(12-size)
   number= number<<(12-size)
   bottomPart= number % 256
   topPart=(number-bottomPart)>>8
   firstByte=bit7+bit6+bit5+bit4+topPart
   secondByte=bottomPart
   return spi.xfer2([firstByte,secondByte])


 def which_channel():
   channel = raw_input("Which channel do you want to test? Type 0 or 1.\n")
   while not channel.isdigit():
       channel = raw_input("Try again - just numbers 0 or 1 please!\n")
   return channel


 def main():
   channel = 3
   while not (channel == 1 or channel == 0):
       channel = int(which_channel())

   print "These are the connections for the digital to analogue test:"
   print "jumper connecting GP11 to SCLK"
   print "jumper connecting GP10 to MOSI"
   print "jumper connecting GP9 to MISO"
   print "jumper connecting GP7 to CSnB"
   print "Multimeter connections (set your meter to read V DC):"
   print "  connect black probe to GND"
   print "  connect red probe to DA%d on J29" % channel

   raw_input("When ready hit enter.\n")
   percent=[0,25,75,100]

   for p in percent:
       r = changeLevel(channel,1,p)
       print "Your meter should read about {0:.2f}V".format(p*2.048/100.0)
       raw_input("When ready hit enter.\n")

   r = changeLevel(0,0,0)
   r = changeLevel(1,0,0)

 if __name__ == '__main__':
   main()


I2Cのテスト

i2c_test.py

 #!/usr/bin/env python
 # -*- coding: euc-jp -*-
 import smbus
 import time

 def main():
   # LCD initialize
   i2c = smbus.SMBus(1)
   addr = 0x3e
   contrast = 42   # 0-63
   i2c.write_byte_data(addr, 0, 0x38)  # function set(IS=0)
   i2c.write_byte_data(addr, 0, 0x39)  # function set(IS=1)
   i2c.write_byte_data(addr, 0, 0x14)  # internal osc
   i2c.write_byte_data(addr, 0,(0x70 | (contrast & 0x0f))) # contrast
   i2c.write_byte_data(addr, 0,(0x54 | ((contrast >> 4) & 0x03)))  # contrast/icon/power
   i2c.write_byte_data(addr, 0, 0x6c)  # follower control
   time.sleep(0.2)
   i2c.write_byte_data(addr, 0, 0x38)  # function set(IS=0)
   i2c.write_byte_data(addr, 0, 0x0C)  # Display On
   i2c.write_byte_data(addr, 0, 0x01)  # Clear Display
   i2c.write_byte_data(addr, 0, 0x06)  # Entry Mode Set
   time.sleep(0.2)

   # LCD Clear
   i2c.write_byte_data(addr, 0, 0x38)  # function set(IS=0)
   i2c.write_byte_data(addr, 0, 0x0C)  # Display On
   i2c.write_byte_data(addr, 0, 0x01)  # Clear Display
   i2c.write_byte_data(addr, 0, 0x06)  # Entry Mode Set
   time.sleep(0.2)

   # Send to LCD
   line1 = '__test__'
   for c in line1:
     i2c.write_byte_data(addr, 0x40, ord(c))
   i2c.write_byte_data(addr, 0, 0xc0)  # 2nd line
   line2 = '__!(^^)!__'
   for c in line2:
     i2c.write_byte_data(addr, 0x40, ord(c))


 if __name__ == '__main__':
   main()

PWMのテスト

XBeeのテスト
