OpenRTM-aist-Python 1.2.1
|
InPortPushConnector class. More...
Public Member Functions | |
def | __init__ (self, info, provider, listeners, buffer=None) |
InPortPushConnector(ConnectorInfo info, InPortProvider* provider, ConnectorListeners listeners, CdrBufferBase* buffer = 0);. | |
def | __del__ (self) |
Destructor. More... | |
def | read (self, data) |
Reading data. More... | |
def | disconnect (self) |
disconnect More... | |
def | activate (self) |
Connector activation. More... | |
def | deactivate (self) |
Connector deactivation. More... | |
def | createBuffer (self, profile) |
create buffer More... | |
def | write (self, data) |
Reading data. More... | |
def | onConnect (self) |
Invoke callback when connection is established void onConnect() | |
def | onDisconnect (self) |
Invoke callback when connection is destroied void onDisconnect() | |

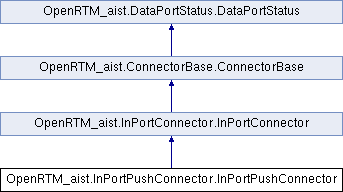

Public Member Functions inherited from OpenRTM_aist.InPortConnector.InPortConnector | |
def | __init__ (self, info, buffer) |
ConstructorInPortConnector(ConnectorInfo& info, CdrBufferBase* buffer);. | |
def | __del__ (self) |
Destructor. | |
def | profile (self) |
Getting ConnectorInfo. More... | |
def | id (self) |
Getting Connector ID. More... | |
def | name (self) |
Getting Connector name. More... | |
def | disconnect (self) |
Disconnect connection. More... | |
def | getBuffer (self) |
Getting Buffer. More... | |
def | read (self, data) |
Destructor. More... | |
Public Member Functions inherited from OpenRTM_aist.ConnectorBase.ConnectorBase | |
def | __del__ (self) |
Destructor. | |
def | profile (self) |
Getting Profile. More... | |
def | id (self) |
Getting Connector ID. More... | |
def | name (self) |
Getting Connector name. More... | |
def | disconnect (self) |
Disconnect connection. More... | |
def | getBuffer (self) |
Getting Buffer. More... | |
def | activate (self) |
Connector activation. More... | |
def | deactivate (self) |
Connector deactivation. More... | |
Public Member Functions inherited from OpenRTM_aist.DataPortStatus.DataPortStatus | |
def | toString (status) |
Convert DataPortStatus into the string. More... | |
Additional Inherited Members | |
Static Public Attributes inherited from OpenRTM_aist.DataPortStatus.DataPortStatus | |
int | PORT_OK = 0 |
DataPortStatus return codes. More... | |
InPortPushConnector class.
Connector class of InPort for push type dataflow. When "push" is specified as dataflow_type at the time of establishing connection, this object is generated and owned by the InPort. This connector and OutPortPushConnector make a pair and realize push type dataflow of data ports. One connector corresponds to one connection which provides a data stream. Connector is distinguished by ID of the UUID that is generated at establishing connection.
InPortPushConnector owns and manages the following objects.
Data written into the OutPort are passed to the InPortProvider::put() by OutPortConnector. The data is written into the buffer in the connector.
def OpenRTM_aist.InPortPushConnector.InPortPushConnector.__del__ | ( | self | ) |
Destructor.
This operation calls disconnect(), which destructs and deletes the consumer, the publisher and the buffer.
def OpenRTM_aist.InPortPushConnector.InPortPushConnector.activate | ( | self | ) |
Connector activation.
This operation activates this connector
virtual void activate(){}; // do nothing
def OpenRTM_aist.InPortPushConnector.InPortPushConnector.createBuffer | ( | self, | |
profile | |||
) |
create buffer
This function creates a buffer based on given information.
info | Connector information |
virtual CdrBufferBase* createBuffer(Profile& profile);
def OpenRTM_aist.InPortPushConnector.InPortPushConnector.deactivate | ( | self | ) |
Connector deactivation.
This operation deactivates this connector
virtual void deactivate(){}; // do nothing
def OpenRTM_aist.InPortPushConnector.InPortPushConnector.disconnect | ( | self | ) |
disconnect
This operation destruct and delete the consumer, the publisher and the buffer.
virtual ReturnCode disconnect();
def OpenRTM_aist.InPortPushConnector.InPortPushConnector.read | ( | self, | |
data | |||
) |
Reading data.
This function reads data from the buffer. If data is read properly, this function will return PORT_OK return code. Except normal return, BUFFER_EMPTY, TIMEOUT, PRECONDITION_NOT_MET and PORT_ERROR will be returned as error codes.
virtual ReturnCode read(cdrMemoryStream& data); buffer returns BUFFER_OK BUFFER_EMPTY TIMEOUT PRECONDITION_NOT_MET
def OpenRTM_aist.InPortPushConnector.InPortPushConnector.write | ( | self, | |
data | |||
) |
Reading data.
This function write data to the buffer. If data is write properly, this function will return BUFFER_OK return code. Except normal return, BUFFER_FULL, TIMEOUT, PRECONDITION_NOT_MET and BUFFER_ERROR will be returned as error codes.
ReturnCode write(const OpenRTM::CdrData& data);
