RTC::OutPort< DataType > Class Template Reference

OutPort template class. More...

#include <OutPort.h>

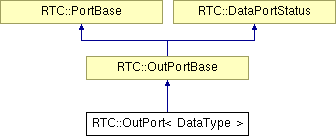

Inheritance diagram for RTC::OutPort< DataType >:

List of all members.

Public Member Functions
	OutPort (const char *name, DataType &value)
	Constructor.
virtual	~OutPort (void)
	Destructor.
virtual bool	write (DataType &value)
	Write data.
bool	write ()
	Write data.
bool	operator<< (DataType &value)
	Write data.
DataPortStatus::Enum	getStatus (int index)
	Getting specified connector's writing status.
DataPortStatusList	getStatusList ()
	Getting specified connector's writing status list.
void	setOnWrite (OnWrite< DataType > *on_write)
	Set OnWrite callback.
void	setOnWriteConvert (OnWriteConvert< DataType > *on_wconvert)
	Set OnWriteConvert callback.

---

Detailed Description

template<class DataType>
class RTC::OutPort< DataType >

OutPort template class.

This is the OutPort template class. The data type "DateType" supported by OutPort and the buffer type "BufferType" are used as template arguments.

Since:

0.2.0

---

Constructor & Destructor Documentation

template<class DataType >

RTC::OutPort< DataType >::OutPort	(	const char *	name,
		DataType &	value
	)			[inline]

Constructor.

Constructor

Parameters:

	name	Port's name
	value	Data variable bound to this port
	length	Buffer length (The default value:8)

template<class DataType >

virtual RTC::OutPort< DataType >::~OutPort

(

void

)

[inline, virtual]

Destructor.

Destructor

---

Member Function Documentation

template<class DataType >

DataPortStatus::Enum RTC::OutPort< DataType >::getStatus

(

int

index

)

[inline]

Getting specified connector's writing status.

An OutPort has Connectors that are virtual data stream channel for each connection. "write()" function write into these Connectors, and each Connector returns writing-status. write() function will return a true value if all Connectors return normal status, and a false value will be returned if at least one Connector failed. This function can be used to inspect each return status

Parameters:

index

Connector index

Returns:

Writing status

template<class DataType >

DataPortStatusList RTC::OutPort< DataType >::getStatusList

(

)

[inline]

Getting specified connector's writing status list.

An OutPort has Connectors that are virtual data stream channel for each connection. "write()" function write into these Connectors, and each Connector returns writing-status. write() function will return a true value if all Connectors return normal status, and a false value will be returned if at least one Connector failed. This function can be used to inspect each return status

Returns:

Writing status list

template<class DataType >

bool RTC::OutPort< DataType >::operator<<

(

DataType &

value

)

[inline]

Write data.

Write data to the port. Write the set value to the port.

Parameters:

value

The target data for writing

Returns:

Writing result (Successful:true, Failed:false)

References RTC::OutPort< DataType >::write().

template<class DataType >

void RTC::OutPort< DataType >::setOnWrite

(

OnWrite< DataType > *

on_write

)

[inline]

Set OnWrite callback.

This operation sets the OnWrite callback functor that is called just before write() operation call. The ownership of the functor object is owned by caller of this operation. Therefore caller have to destruct the callback functor object by itself. Giving 0 as an argument for this operation, callback will be disabled.

Parameters:

on_write

OnWrite callback functor

template<class DataType >

void RTC::OutPort< DataType >::setOnWriteConvert

(

OnWriteConvert< DataType > *

on_wconvert

)

[inline]

Set OnWriteConvert callback.

This operation sets the OnWriteConvert callback functor that converts given data and is called just before write() operation call. A recent data is given to argument and return data will be written into connector or its buffer. The ownership of the functor object is owned by caller of this operation. Therefore caller have to destruct the callback functor object by itself. Giving 0 as an argument for this operation, callback will be disabled.

Parameters:

on_wconvert

OnWriteConvert callback functor

template<class DataType >

bool RTC::OutPort< DataType >::write

(

)

[inline, virtual]

Write data.

Write data to the port. Write the value, which was set to the bound variable, to the port.

Returns:

Writing result (Successful:true, Failed:false)

Implements RTC::OutPortBase.

Referenced by RTC::OutPort< DataType >::operator<<().

template<class DataType >

virtual bool RTC::OutPort< DataType >::write

(

DataType &

value

)

[inline, virtual]

Write data.

Write data in the port.

• When callback functor OnWrite is already set, OnWrite will be invoked before writing into the buffer held by OutPort.
• When the buffer held by OutPort can detect the overflow, and when it detected the overflow at writing, callback functor OnOverflow will be invoked.
• When callback functor OnWriteConvert is already set, the return value of operator() of OnWriteConvert will be written into the buffer at the writing.

Parameters:

value

The target data for writing

Returns:

Writing result (Successful:true, Failed:false)

References RTC::DataPortStatus::CONNECTION_LOST, RTC::PortBase::disconnect(), RTC::PortBase::findConnProfile(), CORBA_SeqUtil::for_each(), RTC::OutPortBase::m_connectors, RTC::PortBase::m_connectorsMutex, RTC::PortBase::m_onConnectionLost, RTC::DataPortStatus::PORT_OK, RTC_DEBUG, RTC_TRACE, and RTC_WARN.
