RTC::InPort< DataType > Class Template Reference

#include <InPort.h>

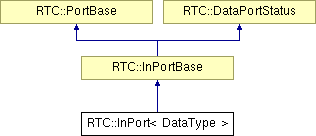

Inheritance diagram for RTC::InPort< DataType >:

Public Member Functions
DATAPORTSTATUS_ENUM	InPort (const char *name, DataType &value, int bufsize=64, bool read_block=false, bool write_block=false, int read_timeout=0, int write_timeout=0)
	A constructor.
virtual	~InPort (void)
	Destructor.
virtual const char *	name ()
	Get port name.
virtual bool	isNew ()
	Check whether the data is newest.
virtual bool	isEmpty ()
	Check whether the data is newest.
bool	read ()
	Readout the value from DataPort.
virtual void	update ()
	Read the newly value to type-T variable which is bound to InPort's buffer.
void	operator>> (DataType &rhs)
	Read the newly value data in InPort to type-T variable.
void	setOnRead (OnRead< DataType > *on_read)
	Set callback when data is read from the InPort buffer.
void	setOnReadConvert (OnReadConvert< DataType > *on_rconvert)
	Set callback when data is readout to the InPort buffer.

Detailed Description

template<class DataType>
class RTC::InPort< DataType >

InPort template class.

This is a template class that implements InPort. <T> is the type defined in BasicDataType.idl and must be the structure which has both Time type tm and type-T data as a member. InPort has a ring buffer internally, and stores the received data externally in this buffer one by one. The size of ring buffer can be specified according to the argument of constructor, though the default size is 64. Unread data and data which is already read are managed with the flag, and the data can be handled by the isNew(), write(), read(), isFull() and isEmpty() method etc.

Since:: 0.2.0

Constructor & Destructor Documentation

template<class DataType >

DATAPORTSTATUS_ENUM RTC::InPort< DataType >::InPort	(	const char *	name,
		DataType &	value,
		int	bufsize = `64`,
		bool	read_block = `false`,
		bool	write_block = `false`,
		int	read_timeout = `0`,
		int	write_timeout = `0`
	)			`[inline]`

A constructor.

constructor. This is bound to type-T variable given as a parameter.

Parameters:

	name	A name of the InPort. This name is referred by InPortBase::name().
	value	type-T variable that is bound to this InPort.
	bufsize	Buffer length of internal ring buffer of InPort (The default value:64)
	read_block	Flag of reading block. When there are not unread data at reading data, set whether to block data until receiving the next data. (The default value:false)
	write_block	Flag of writing block. If the buffer was full at writing data, set whether to block data until the buffer has space. (The default value:false)
	read_timeout	Data reading timeout time (millisecond) when not specifying read blocking. (The default value:0)
	write_timeout	Data writing timeout time (millisecond) when not specifying writing block. (The default value:0)

template<class DataType >

virtual RTC::InPort< DataType >::~InPort ( void ) [inline, virtual]

Destructor.

Destructor

Member Function Documentation

template<class DataType >

virtual bool RTC::InPort< DataType >::isEmpty ( void ) [inline, virtual]

Check whether the data is newest.

Check whether the data stored at a current buffer position is newest.

Returns:: Newest data check result ( true:Newest data. Data has not been readout yet. false:Past data．Data has already been readout.)

References RTC::InPortBase::m_connectors, RTC::PortBase::m_connectorsMutex, RTC_DEBUG, and RTC_TRACE.

template<class DataType >

virtual bool RTC::InPort< DataType >::isNew ( ) [inline, virtual]

Check whether the data is newest.

Check whether the data stored at a current buffer position is newest.

Returns:: Newest data check result ( true:Newest data. Data has not been readout yet. false:Past data．Data has already been readout.)

References RTC::InPortBase::m_connectors, RTC::PortBase::m_connectorsMutex, RTC_DEBUG, and RTC_TRACE.

template<class DataType >

virtual const char* RTC::InPort< DataType >::name ( ) [inline, virtual]

Get port name.

Returns:: The port name

template<class DataType >

void RTC::InPort< DataType >::operator>> ( DataType & rhs ) [inline]

Read the newly value data in InPort to type-T variable.

Read the newly data set in InPort and set to specified data variable.

Parameters:

rhs

The type-T variable to read from InPort's buffer

References RTC::InPort< DataType >::read().

template<class DataType >

bool RTC::InPort< DataType >::read ( ) [inline, virtual]

Readout the value from DataPort.

Readout the value from DataPort

When Callback functor OnRead is already set, OnRead will be invoked before reading from the buffer held by DataPort.
When the buffer held by DataPort can detect the underflow, and when it detected the underflow at reading, callback functor OnUnderflow will be invoked.
When callback functor OnReadConvert is already set, the return value of operator() of OnReadConvert will be the return value of read().
When timeout of reading is already set by setReadTimeout(), it waits for only timeout time until the state of the buffer underflow is reset, and if OnUnderflow is already set, this will be invoked to return.

Returns:: Readout result (Successful:true, Failed:false)

Implements RTC::InPortBase.

References RTC::DataPortStatus::BUFFER_EMPTY, RTC::DataPortStatus::BUFFER_TIMEOUT, RTC::InPortBase::m_connectors, RTC::PortBase::m_connectorsMutex, RTC::DataPortStatus::PORT_OK, RTC_DEBUG, RTC_ERROR, RTC_TRACE, and RTC_WARN.

Referenced by RTC::InPort< DataType >::operator>>(), and RTC::InPort< DataType >::update().

template<class DataType >

void RTC::InPort< DataType >::setOnRead ( OnRead< DataType > * on_read ) [inline]

Set callback when data is read from the InPort buffer.

Set the callback object that is invoked right before data is read from the InPort's buffer

Parameters:

on_read

OnRead<DataType> type object

template<class DataType >

void RTC::InPort< DataType >::setOnReadConvert ( OnReadConvert< DataType > * on_rconvert ) [inline]

Set callback when data is readout to the InPort buffer.

Set the callback object that is invoked when data is readout to the InPort's buffer. The return value of callback object is the return result of the read() method.

Parameters:

on_rconvert

OnReadConvert<DataType> type object

template<class DataType >

virtual void RTC::InPort< DataType >::update ( void ) [inline, virtual]

Read the newly value to type-T variable which is bound to InPort's buffer.

Read the newly value to type-T data which is bound to InPort's buffer. The type-T variable must be bound to InPort in constructor. Since this method assumes to be used for polymorphic, its argument and the return value do not depend on type.

References RTC::InPort< DataType >::read().
